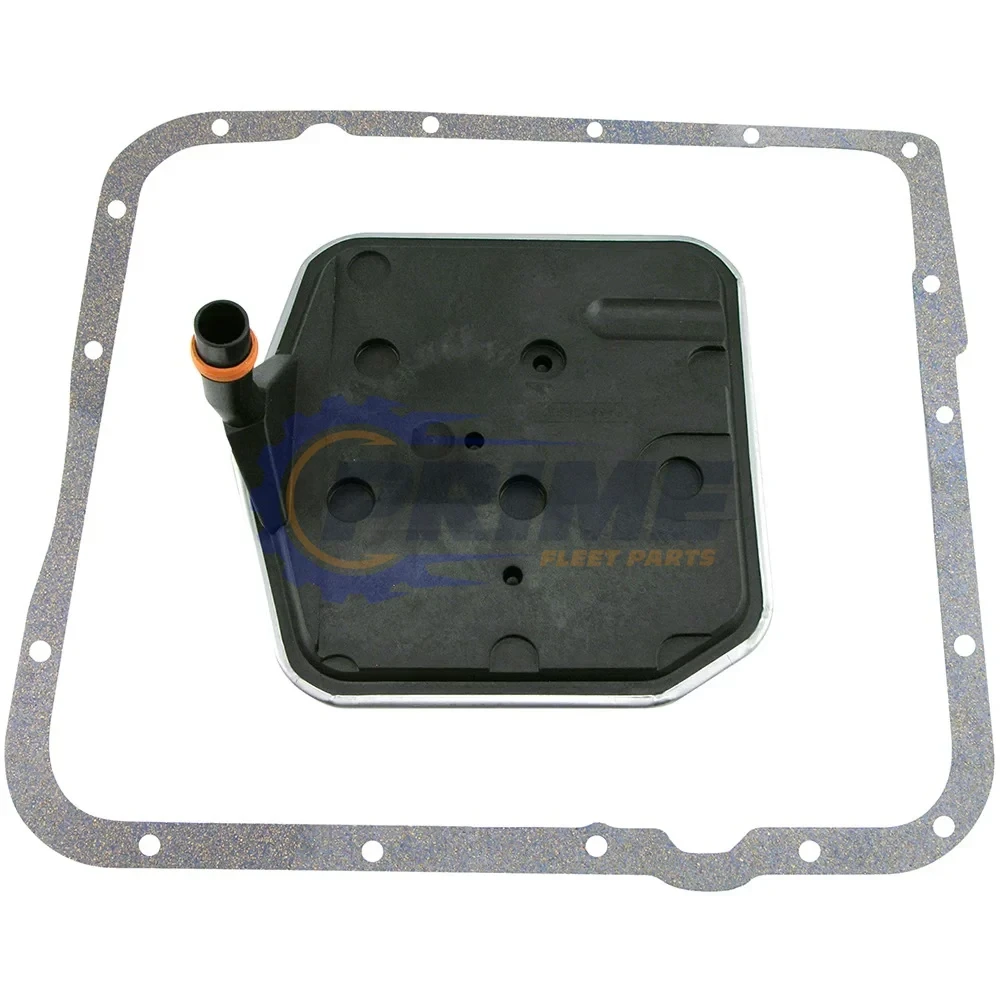

Product Description
Baldwin's automatic transmission filters protect the transmission's internal components by removing wear particles created by moving parts under normal operating conditions. In automotive applications, the transmission filter is integrated into the sump, or pan.
Technical Specifications
| Product Type | Transmission Filter |
|---|---|
| Brand | Baldwin |
| Notes | Pan gasket contains [16] bolt holes. |
| Nominal Outside Diameter | 3.8" |
| End Cap Material | Tin-Plated Steel |
| End Cap Configuration | SOE - Closed top w/ bolt hole, open bottom |
| Filter Material | Polyester |
| Maximum Operating Temperature | 240 F |
| Nominal Inside Diameter | 1.7" |
| Core Material | Tin-Plated Steel |
| Cartridge Length | 29.4" |
| Micron Rating | PL-01/STANDARD: 99.5% ? 0.3 Liquid Droplets, ?50PPB Effluent |
| Seal Material | Buna-N |
| pH Range | 3-9 |
| Division | Engine Mobile Aftermarket |
| Industry | • Automotive |
| Technology | Filtration |
| Product Style | Transmission Filter |
| Size | 8 1/16 x 7 7/8 x 4 1/4 (204.8 x 200.0 x 108.0) |
| Gasket | Pan Gasket: [1] Included |
| Application | 1987-91 Avanti II; 1986-93 Buick, 1991-93 Cadillac, 1982-95 Chevrolet, 1988-93 Oldsmobile, 1983-93 Pontiac Automotive, 1982-93 GMC Light-Duty Trucks with 4L60 (THM700-R4) Transmission (RWD, 4 Spd. with Overdrive) |
| Compatible Competitor Part Number | GMC 25011237 |
Warranty Information
1 Year Manufacturer WarrantyProduct Videos
Custom Field
Part Status Active
Oversized No
Manufacturer Baldwin Filters
Class Description Transmission Filters
Group Name Transmission Filter
Package Qty 1
