Product Description
"Baldwin hydraulic filters offer superior protection for your engine-powered equipment. Improving system fluid cleanliness levels, providing better cold start performance and meeting service interval expectations are the primary objectives in the design of Baldwin hydraulic elements. Baldwin hydraulic elements utilize cellulose, synthetic and blended media to meet these performance specifications. A full range of filters is available to accommodate low, medium and high pressure applications.
Technical Specifications

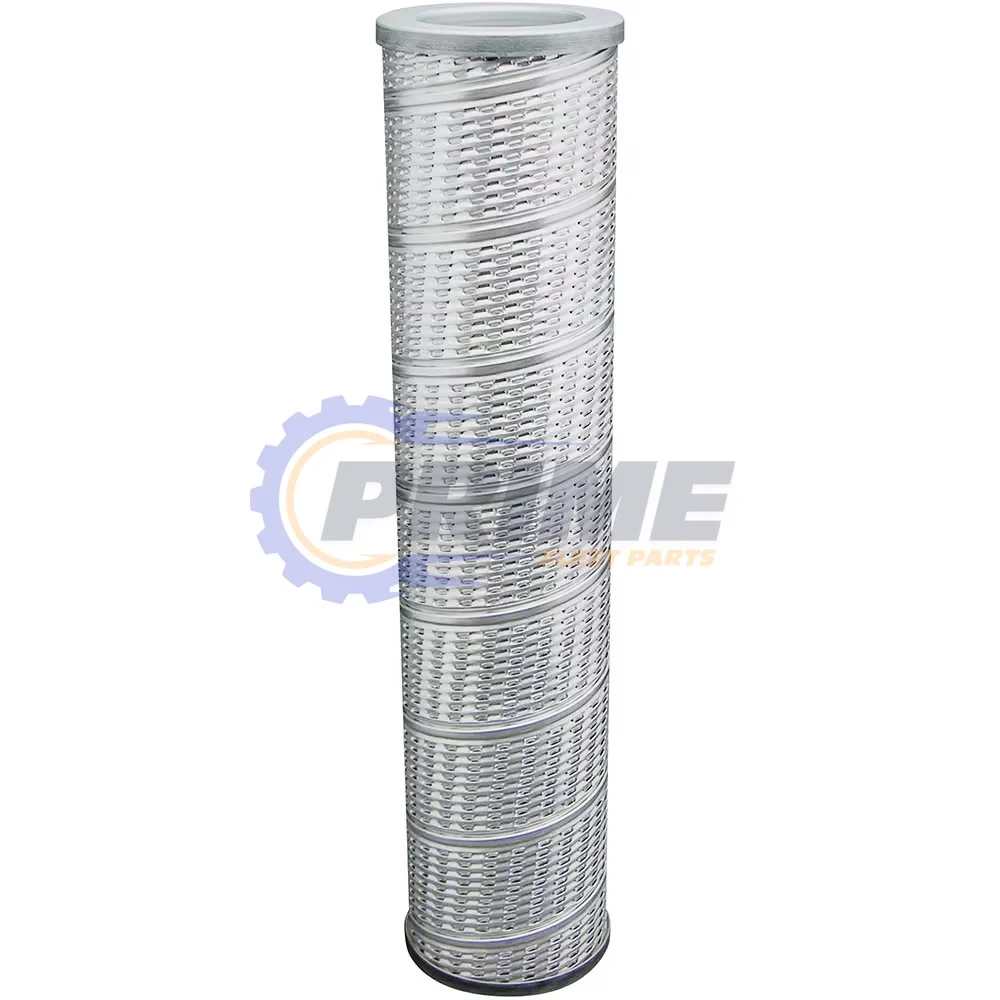

| Product Type | Maximum Performance Glass Hydraulic Element |
|---|---|
| Notes | Inside-Out Flow Direction |
| Outside Diameter | 4 5/32 (105.6) |
| Inside Diameter | 13/32 (10.3) & 2 27/32 (72.2) |
| Length | 18 5/16 (465.1) |
| O-ring | [1] Attached |
| Micron Rating | 8 Absolute |
| Application | J.C. Bamford 426 Series, 434S, 436 Series, 456 Series Loaders; John Deere 1063 Tree Harvester; F106, F106A Motor Graders |
| Compatible Competitor Part Number | Heil 7571101 |
| Brand | Baldwin |
Warranty Information
1 Year Manufacturer WarrantyProduct Videos
Custom Field
Part Status Active
Oversized No
Manufacturer Baldwin Filters
Class Description Hydraulic Filter Elements
Group Name Maximum Performance Glass Hydraulic Element
Package Qty 1
