Product Description
"Baldwin hydraulic filters offer superior protection for your engine-powered equipment. Improving system fluid cleanliness levels, providing better cold start performance and meeting service interval expectations are the primary objectives in the design of Baldwin hydraulic elements. Baldwin hydraulic elements utilize cellulose, synthetic and blended media to meet these performance specifications. A full range of filters is available to accommodate low, medium and high pressure applications.
Technical Specifications

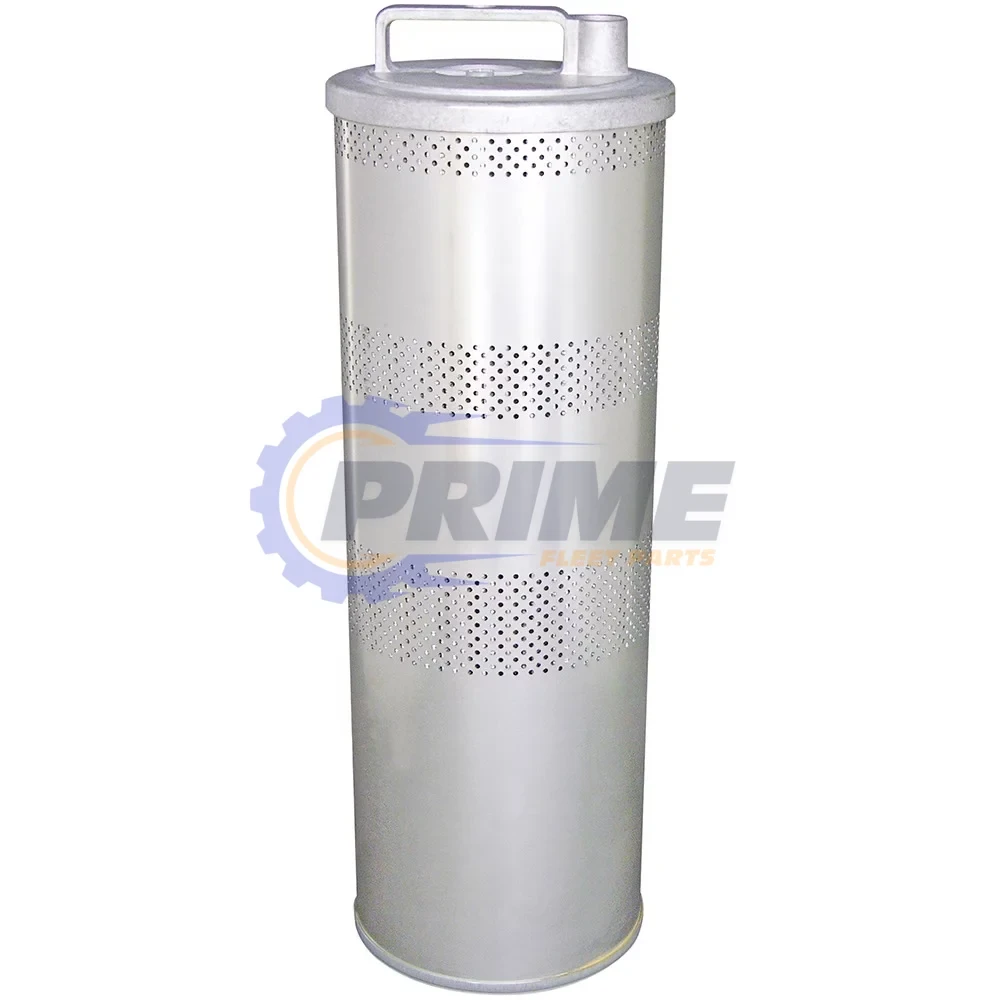

| Product Type | Wire Mesh Supported Maximum Performance Glass Hydraulic Element with Handle |
|---|---|
| Contains | 25 PSID By-Pass Valve;Bleed Hole;Reinforced Centertube |
| Outside Diameter | 6 1/8 (155.6) |
| Inside Diameter | 3 15/16 (100.0) One End |
| Length | 18 5/32 (461.2) |
| Gasket | Attached Gasket: [1] AttachedIntegral Gasket: [1] Included |
| O-ring | [1] Included |
| Micron Rating | 8 Absolute |
| Application | Hitachi Excavators |
| Compatible Competitor Part Number | Hitachi 4448160, 4450003 |
| Brand | Baldwin |
Warranty Information
1 Year Manufacturer WarrantyProduct Videos
Custom Field
Part Status Active
Oversized No
Manufacturer Baldwin Filters
Class Description Hydraulic Filter Elements
Group Name Wire Mesh Supported Maximum Performance Glass Hydraulic Element with Handle
Package Qty 1
