Product Description
Heavy-duty transmission elements remove wear particles, preventing them from damaging moving parts and ensuring proper system function. Replacement elements should be changed based on OE recommended service hours.
Technical Specifications

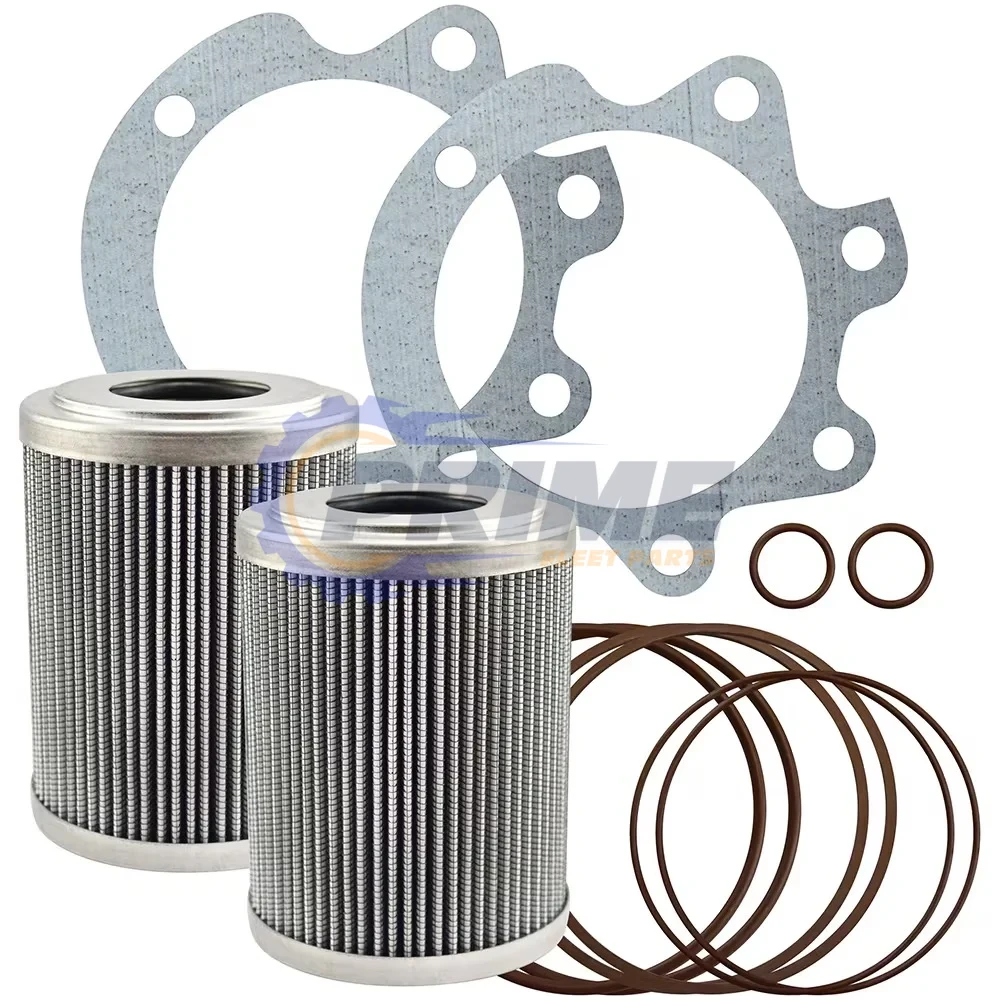

| Product Type | Set of 2 Maximum Performance Glass Transmission Elements |
|---|---|
| Notes | High capacity filters. |
| Outside Diameter | 3 7/32 (81.8) |
| Inside Diameter | 1 17/32 (38.9) One End |
| Length | 4 3/16 (106.4) |
| Gasket | Furnished Gasket: [2] Irregular, [2] Square Cut; Integral Gasket: [1] Included Each Element |
| O-ring | [6] Viton Included |
| Micron Rating | 17 Nominal; 40 Absolute |
| Application | Allison World Transmissions with 2 In. or 7 In. Sump |
| Compatible Competitor Part Number | Allison 29545776, 29548987, 29558117, 29558328; Donaldson P179206, P560972; Fleetguard HF28944, HF35153 |
| Brand | Baldwin |
Warranty Information
1 Year Manufacturer WarrantyProduct Videos
Custom Field
Part Status Active
Oversized No
Manufacturer Baldwin Filters
Class Description Transmission Filter Elements
Group Name Set of 2 Maximum Performance Glass Transmission Elements
Package Qty 1
