Product Description

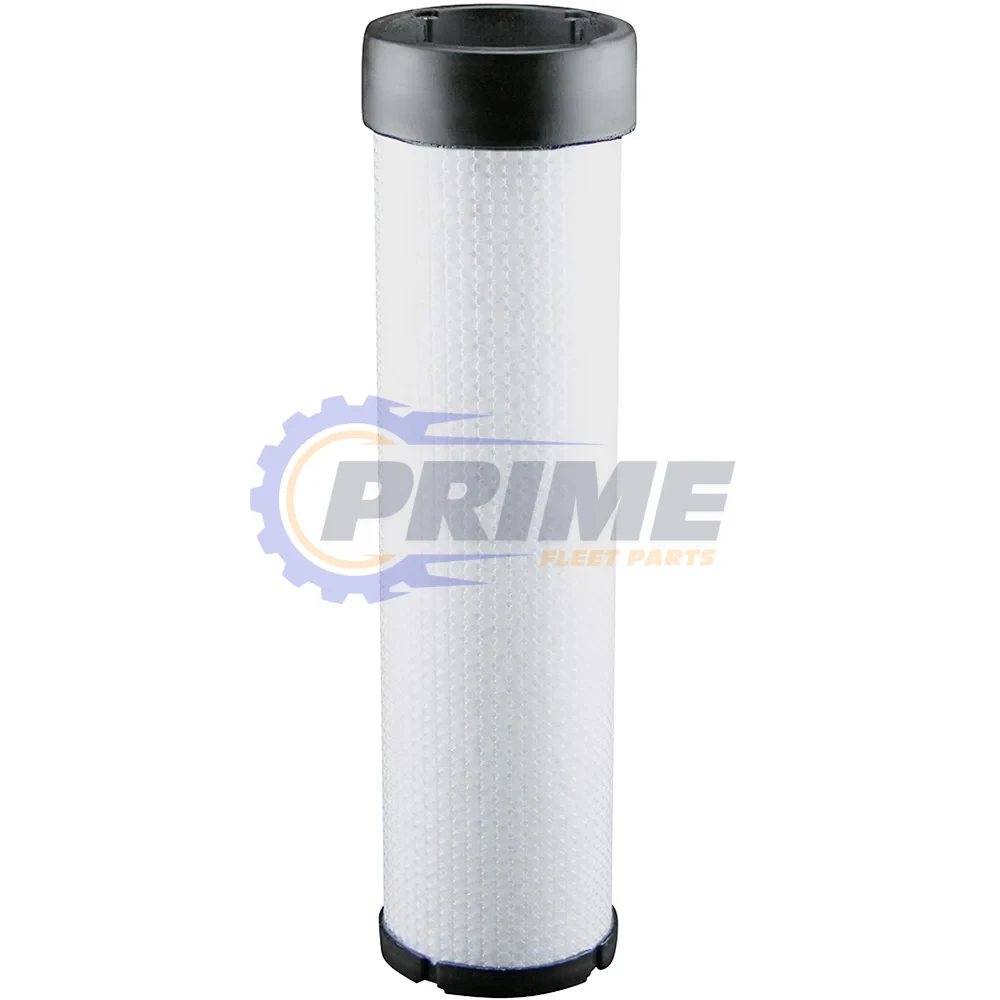

Baldwin engine air intake filter elements protect heavy-duty equipment by preventing airborne dirt and other contaminants from entering the combustion chamber. Radial seal filters utilize a urethane compound to form the molded ends and bond the media pack, which includes the inner and outer metal wrappers, forming a strong, yet flexible package. The heavy-duty radial seal gasket formed from this urethane compound is designed to make servicing easier and more cost effective.
Technical Specifications
| Core Product | in EMEA |
|---|---|
| Product Type | Radial Seal Inner Air Element |
| Fits Inside | RS3544, RS5517 |
| Outside Diameter | 3 21/32 (92.9) |
| Inside Diameter | 2 7/8 (73.0) One End |
| Length | 13 1/2 (342.9) |
| Application | Case, Caterpillar, Gehl, John Deere, New Holland, Vermeer, Volvo Equipment |
| Compatible Competitor Part Number | Case 222422A1; Caterpillar 110-6331; Gehl L99967; John Deere AT171854; New Holland 86982525 |
| Brand | Baldwin |
Warranty Information
1 Year Manufacturer WarrantyProduct Videos
Cross Reference
110-6331, 222422A1, 86982525, AT171854, L99967, 1000113384, 10694757, 1106331, 113851M1, 11883619, 119117-12570, 1318903, 1405A, 150-AF25558, 150-AH19096, 150-AH19098, 151-LAF4545, 155031-001, 155031001, 17235682, 17744U333071, 1930590, 201-533, 2124478, 2 271 980, 238-3451, 2452-CA8297SY, 2452-CA8737SY, 2501353, 26510343, 2652C110, 2860-46569, 2860-49492, 2981124, 2KYG9, 3035-P829333, 30981-70460, 3214312600, 32/915700, 32915702, 32/926097, 3540052M1, 355452, 364200-031, 374772, 37500, 375FW, 4197839A, 4198304A, 4270034M1, 4286014, 42N0211970, 4419-53001-1, 4486014, 46569, 4700374772, 47128156, 47132346, 47132347, 49492, 498-CF990, 498-CF9902, 4-E434LS, 5060-OTRAF20005, 546569, 5523126150, 5730018, 57 301 35, 59106401, 59155127, 600-185-2120, 6005011112, 6 190 628 M1, 66449.0, 68370, 7021081, 70957N, 76094057, 7619405, 7700061012, 77007056, 791440041264, 80273042, 8032066, 8097618, 82981153, 845-RS3545, 8481-01-145, 848101190, 85400778, 86555827, 86559431, 86562968, 87418365, 87438245, 87438246, 87682999, 90003011, 901050, 9304100167, 94569, 9784, 99967, A-5540, A65351, ABP N03 A29333, AES2669, AF2286, AF25485, AF25520, AF25558, AF25558FLG, AFR825485, AFR825520, AFR825558, AH19096, AH19098, AHR819096, AHR819098, ASR889, AT199501, AT262567, BAL-RS3545, BARS3545, BF RS3545, CA5741SY, CA8297SY, CA8737SY, CF990, CF9902, DMX P829333, DN P829333, DN P829333, DNP829333, DONP829333LA, E434LS, EAF68170, EASE68370, FC740, FCAF25558, FG AF25558, FIL6569, FIL9492, FPG082525, FSR8013, KMH0830, L4486014, LA1754, LAF4545, LF LAF4545, LP11P01013P1, LUB-LAF4545, MA1426, MD-7310, OTRAF20005, P33181, P535283, P77-5302, P829333, PA6389, RS3545, RT 60 05011112, SA 16302, SFA5485S, SFA8889SET, ST08-14413, T15835, T52567, VPD7108, VPD7338, WGA1080S, ZDNP829333, ZFGAF25558
Custom Field
Part Status Active
Oversized No
Manufacturer Baldwin Filters
Class Description Air Filter Elements
Group Name Radial Seal Inner Air Element
Package Qty 1
