Product Description

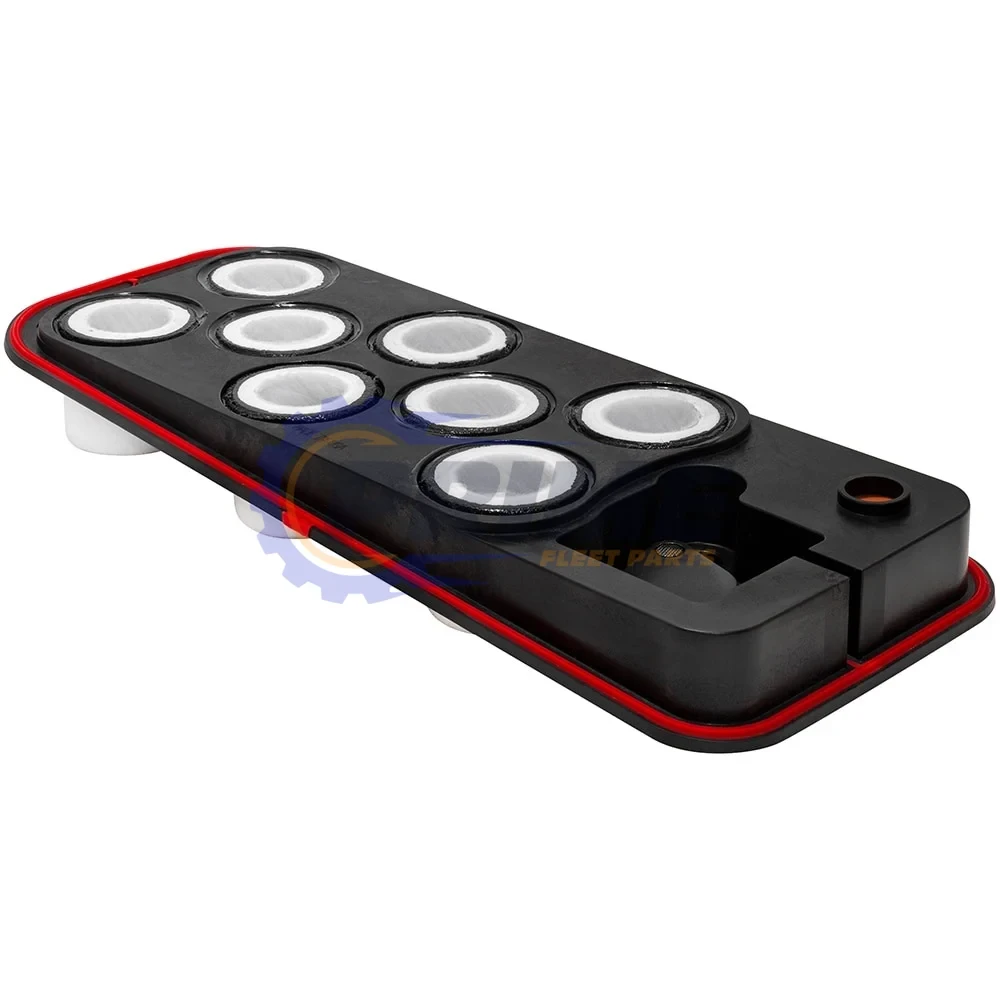

Baldwin crankcase ventilation filters reduce blow-by, which is generated by combustion gases leaking past piston rings, producing oil droplets that would otherwise be included in vehicle emissions. These oil droplets are extremely small and can be classified as a drip or an aerosol, ranging in size from 3 microns down to 0.2 microns. As worldwide emissions standards continue to evolve to protect the environment, crankcase ventilation filtration systems are becoming more critical to reducing total engine emissions.
Technical Specifications
| Product Type | Crankcase Breather |
|---|---|
| Contains | By-Pass Valve |
| Size | 15 7/16 x 6 5/32 x 1 31/32 (392.0 x 56.1 x 50.2) |
| Gasket | Attached Gasket: [1] Attached |
| O-ring | [2] Attached |
| Application | Autocar, Freightliner, Gillig, International, Kenworth, Mack, Peterbilt, Spartan, Western Star Trucks, Blue Bird, El Dorado, New Flyer, Temsa, Thomas, Tiffin, Van Hool Buses; Emergency One, Spartan Fire Trucks; Cummins Engines; Versatile Tractors |
| Compatible Competitor Part Number | Cummins 4937499, 4939749, 5263190; Fleetguard CV50603, CV50628; HiFi CV50628; SF Filters SBL88047 |
| Brand | Baldwin |
Warranty Information
1 Year Manufacturer WarrantyProduct Videos
Custom Field
Part Status Active
Oversized No
Manufacturer Baldwin Filters
Class Description Crankcase Ventilation (CCV) Filters
Group Name Crankcase Breather
Package Qty 1
